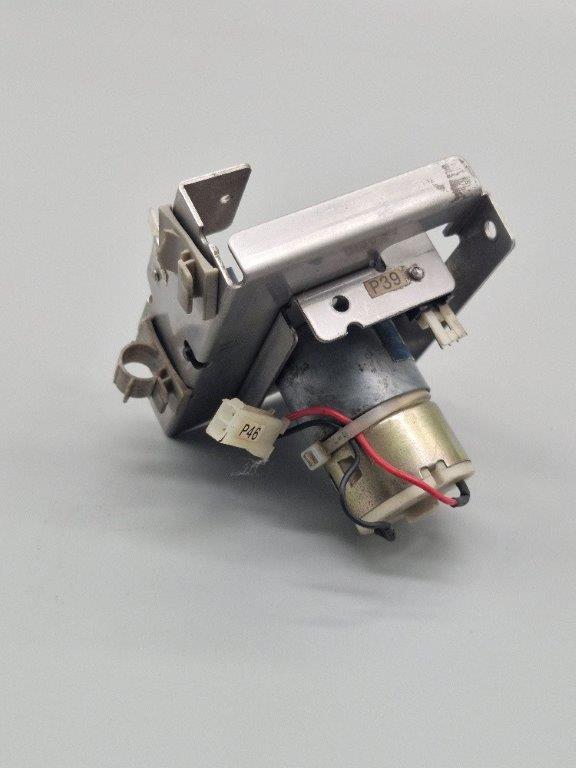

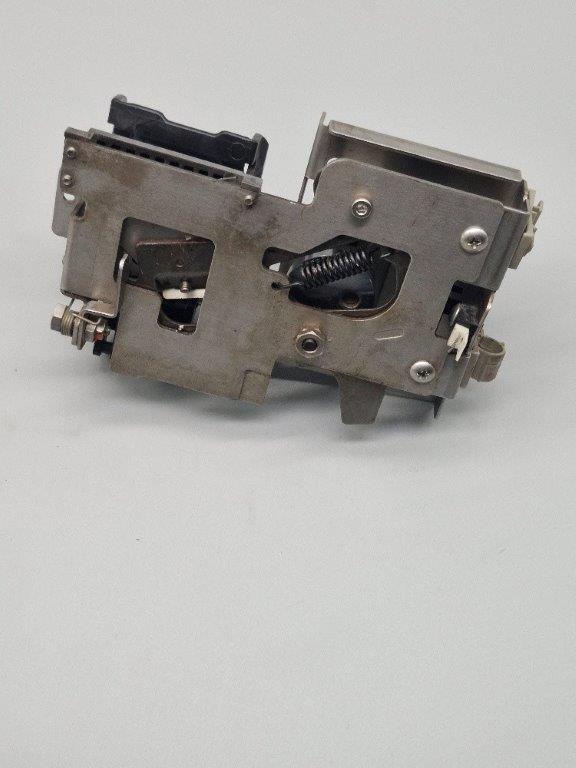

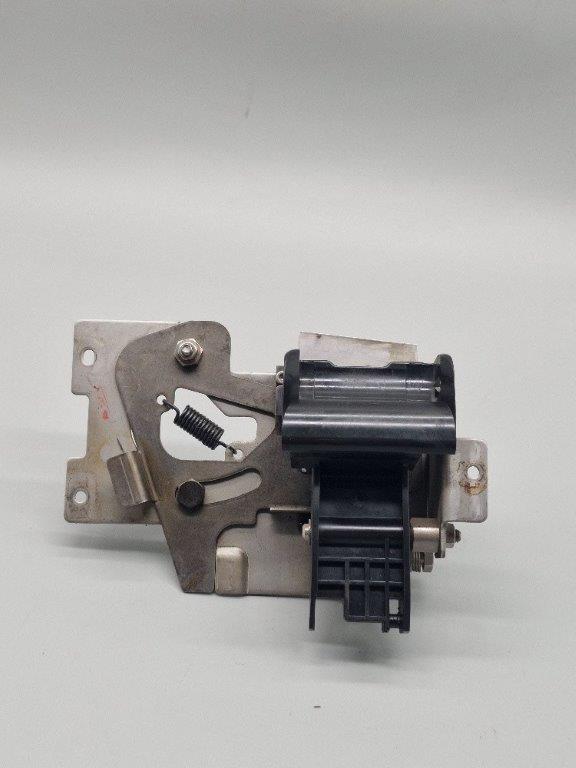

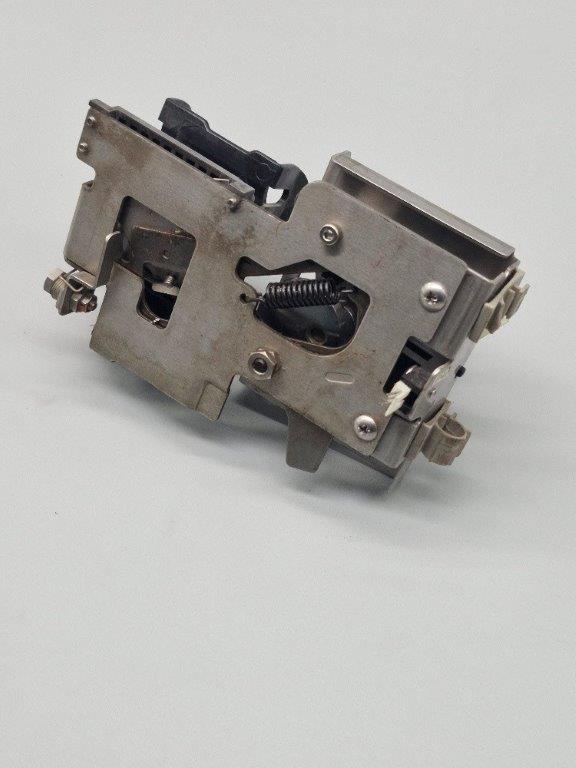

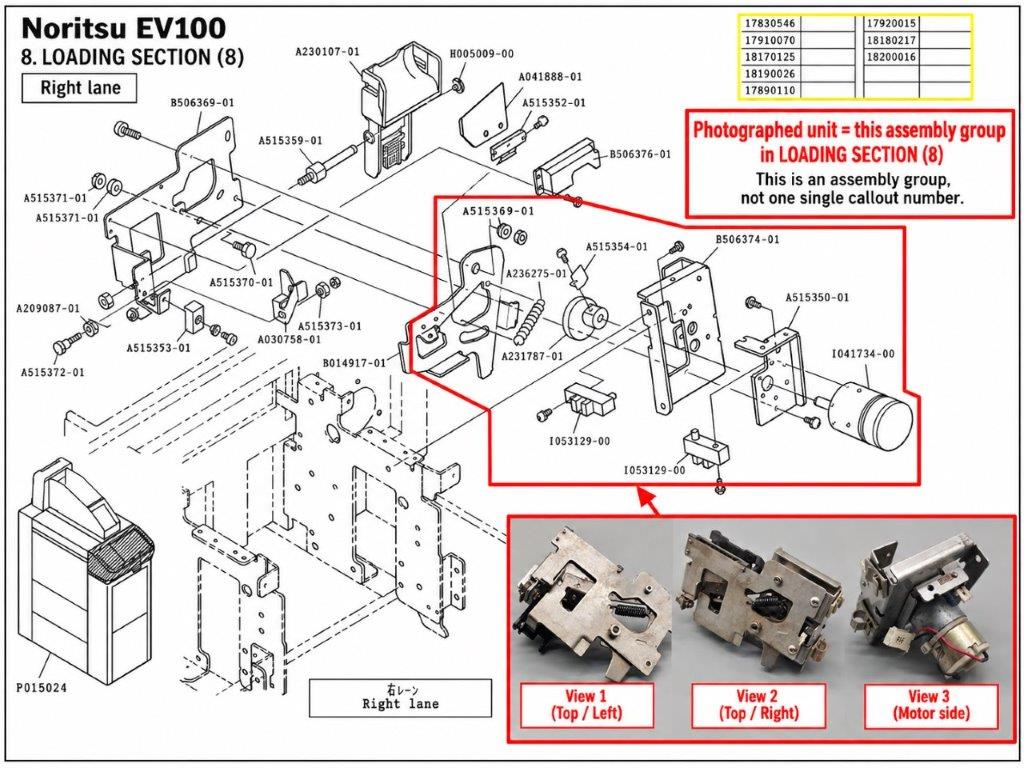

Cutter Unit QSF V100,V50,V30 right and left
Cutter Unit QSF V100,V50,V30 right and left
motor
cutter blade
Photo Micro Sensor
A030758-01 | Lock Plate
A041888-01 | Cutter Blade
A209087-01 | Spring
A230107-01 | Film Cassette Holder Assembly
A231787-01 | Cutter Return Cam (Right)
A236275-01 | Cutter Spring
A515350-01 | Motor Base (Right)
A515352-01 | Blade Holder Plate
A515353-01 | Cushion
A515354-01 | Detection Plate
A515359-01 | Holder Fulcrum Pin
A515369-01 | Cutter Fulcrum Pin
A515370-01 | Guide Pin
A515371-01 | Nut
A515372-01 | Lock Plate Pin Fulcrum
A515373-01 | Fulcrum Pin
B014917-01 | Cutter Plate (Right)
B506369-01 | Cutter Base (Right)
B506374-01 | Motor Holder (Right)
B506376-01 | Cutter Guide (Right)
H005009-00 | E-Ring
I041734-00 | DC Motor
I053129-00 | Photo Micro Sensor
A030755-01 | Lock Plate
A041889-01 | Cutter Blade
A221239-01 | Spring Left
A230107-01 | Film Cassette Holder Assembly
A231786-01 | Cutter Return Cam (Left)
A236275-01 | Cutter Spring
A515349-01 | Motor Base (Left)
A515352-01 | Blade Holder Plate
A515353-01 | Cushion
A515354-01 | Detection Plate
A515359-01 | Holder Fulcrum Pin
A515369-01 | Cutter Fulcrum Pin
A515370-01 | Guide Pin
A515371-01 | Nut
A515372-01 | Lock Plate Pin Fulcrum
A515373-01 | Fulcrum Pin
B014918-01 | Cutter Plate (Left)
B506370-01 | Cutter Base (Left)
B506373-01 | Motor Holder (Left)
B506377-01 | Cutter Guide (Left)
H005009-00 | E-Ring
I041734-00 | DC Motor
I053129-00 | Photo Micro Sensor
Request quotation
