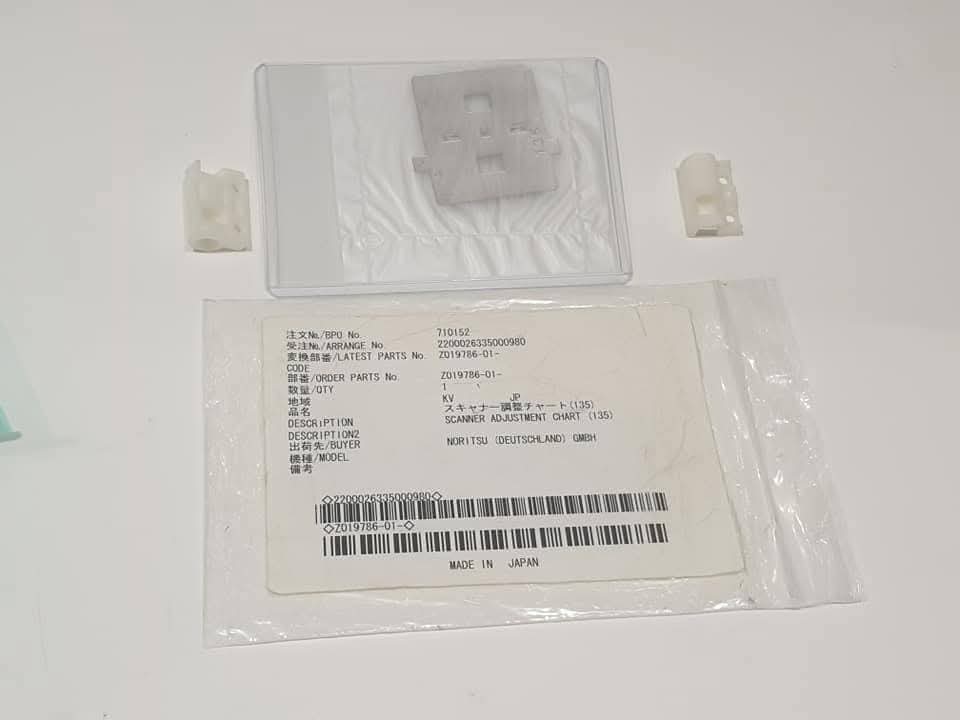

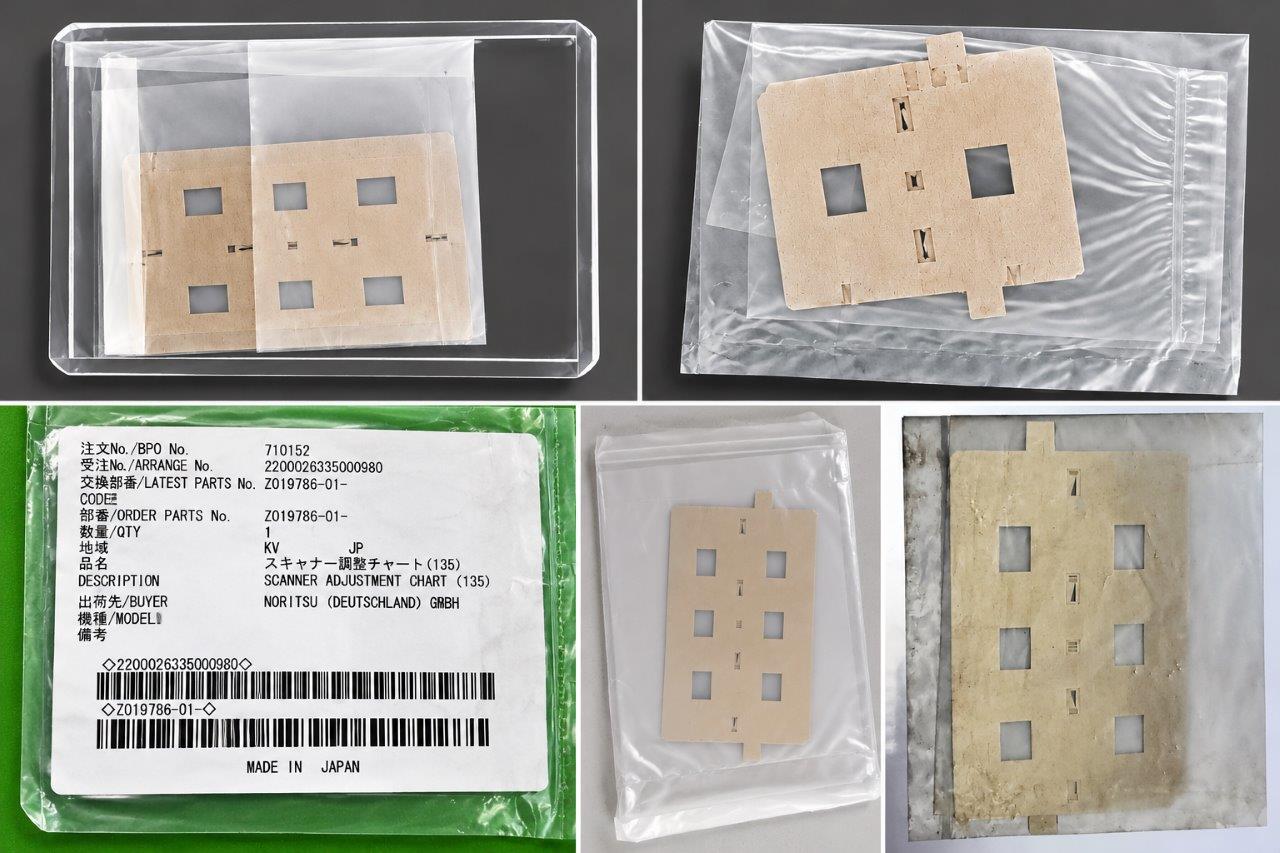

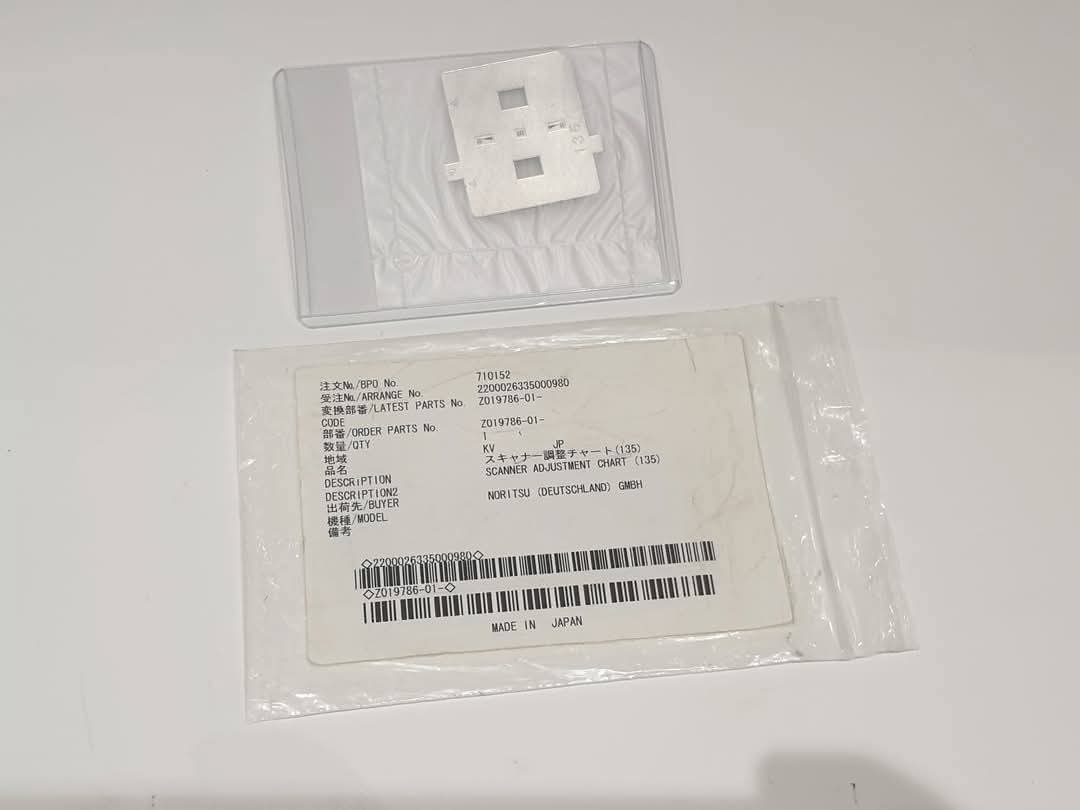

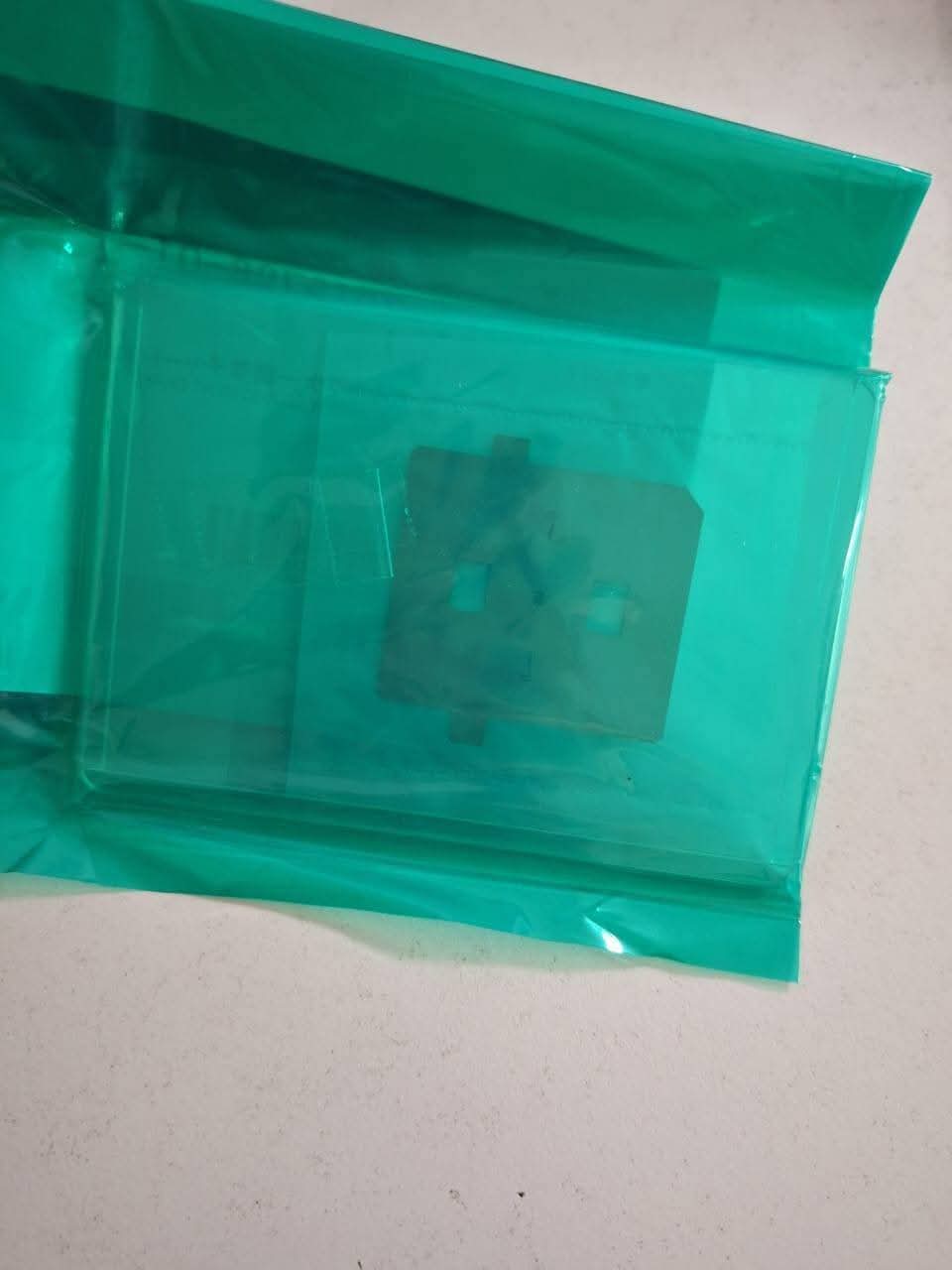

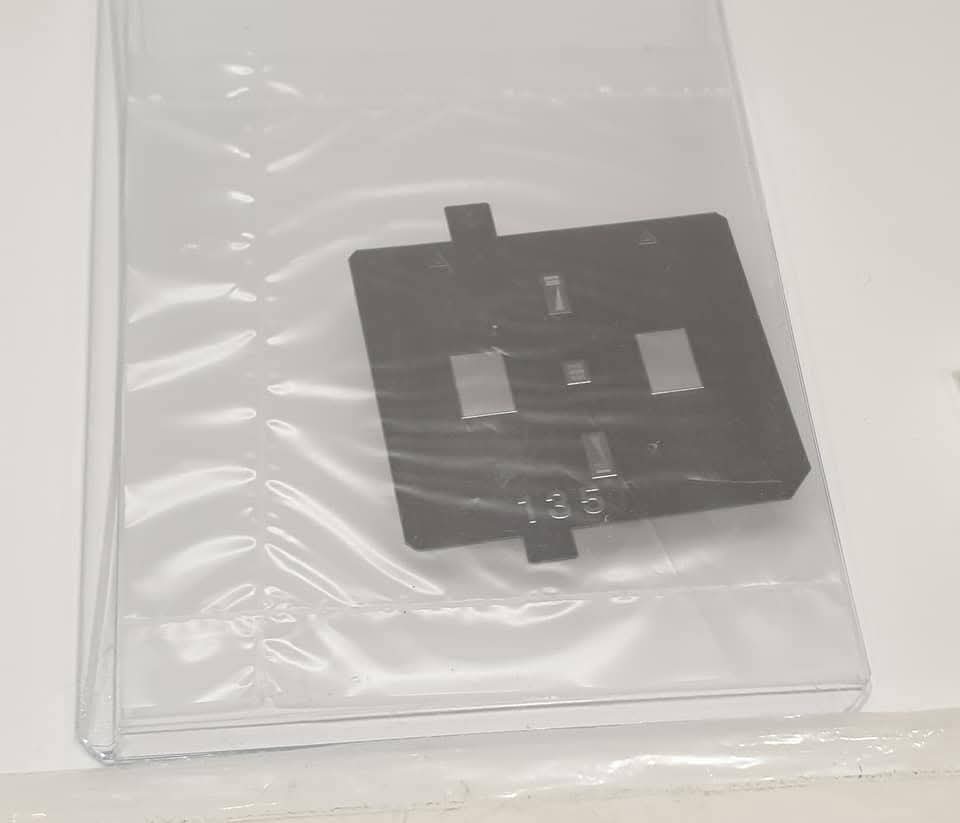

Scanner adjustment chart (135) Z019786-01

120 and 135 focus chart for Noritsu HS-1800 80310 Service personnel tool list Service personnel tool list [LS-600/LS-1100/HS-1800] Tool Part No. Explanation Scanner adjustment chart (135) =786-01 Used for the scanner adjustment such as swing and tilt adjustment, Sumer adjustment chart (240) Z019039-01 light sow adjustment, focus adjustment (including the card case).• Scanner adjustment chart (120) Z019787-01 Sumer adjustment chart (110) Z019041-01 Scanner adjustment chart (mount) Z019668-01 Used to adjust the focus (with the color soft clear case).•l Scanner adjustment chart (crop card) Z022046-01 Used to adjust focus for the crop card attachment of MFC Height adjustment jig A064841-01 Used to adjust the position of the emission lamp and detection sensor of the 135/240 AMC. Height adjustment jig A060553-01 Used to adjust the position of the emission lamp and detection unsor of the 135/240 MMC. AMC emission adjustment chart Z808669-01 Used to adjust the position of the emission lamp and detection sensor of the 135/240 AMC or MMC. •1. Since the scanner adjustment chart is very thin, keep it in the ease when than. Scanner adjustment chart (120) Z019787-01
